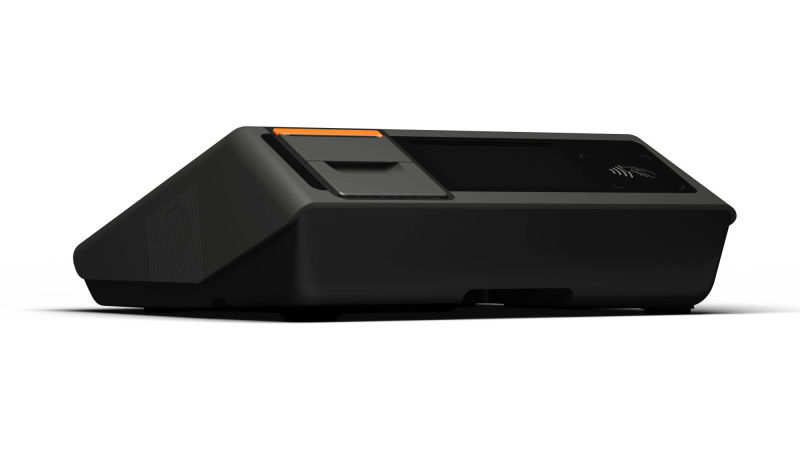

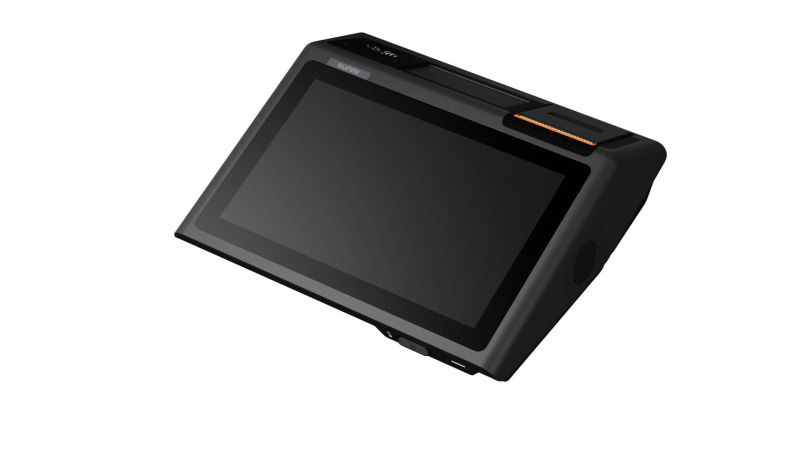

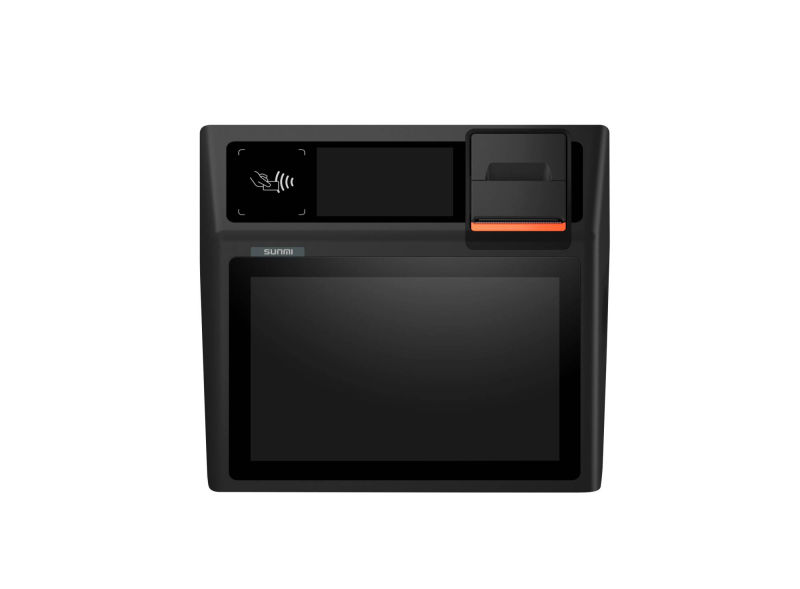

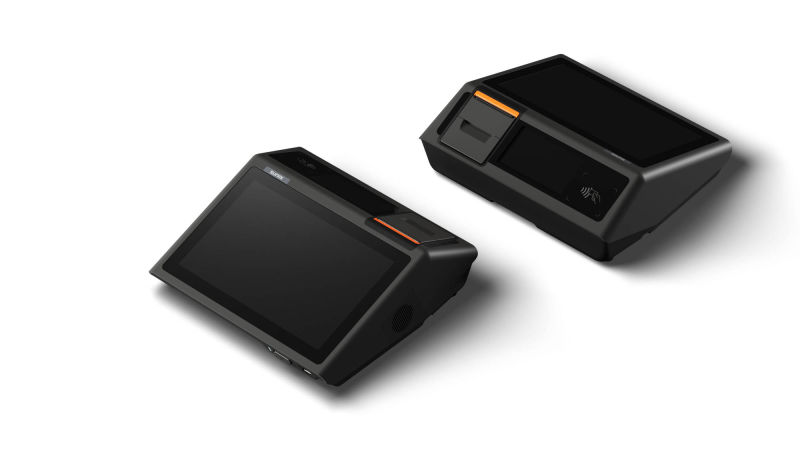

SUNMI D2 Mini POS | T1711

OS

Android 8.1

SUNMI OS

CPU

Quad-core Processor

Memory

2GB RAM+8GB ROM

Display

Main Screen:10.1″ HD, 1280*800

300nits; 10 points capacitive

touch screen

Customer Display: 4.3″WVGA,

800*480, 300nits

Wi-Fi

2.4GHz

Support IEEE 802.11 b/g/n

Bluetooth

Support BT 2.1/3.0/4.2

Support BLE

Key

Power key

(Lock screen button)

Speaker

3W

4

NFC

Support ISO14443 A

ISO14443 B

ISO 15693, MIFARE 1K/4K

PSAM Card

Support Mini-SIM(2FF) Card

External Storage Card

Support MicroSD Card

Max 64GB

Scan Code Module

QR code, Accuracy10mil

Speed0.05s, 30fps

(Only available the scanning version)

Membership Camera

5M FF, USB port

(Only available the

scanning version)

Printer

Built-in 58mthermal printer

Printing speed 160mm/s

Printing life is 50km

Support till rolls of 60mm OD

Tearing paper manually

4G

Support 4G network

(4G network is only available

the printer version)

SIM Card Socket

1.8V/3.0V

Micro SIM(3FF)

(*4G network is only available to

the printer version)

External Interface

5 USB Type-A port

1 RJ11 Serial port

1 RJ12 cash box port

1 RJ45 LAN port

1 Audio jack

1 Power port

1 MicroUSB debug port

Power Adapter

Input: AC100~240V/1.7A

Output: DC24V/1.5A

(Scanning Version)

Input: AC100~240V/1.7A

Output: DC24V/2.5A

(Printer Version)

Dimensions (L*W*H)

260*290*99mm

Weight

Scanning Version: 1.81kg

Printer Version: 1.94kg

Environment

Working temperature:

0C – 40C

Storage temperature:

-20C – 60C
