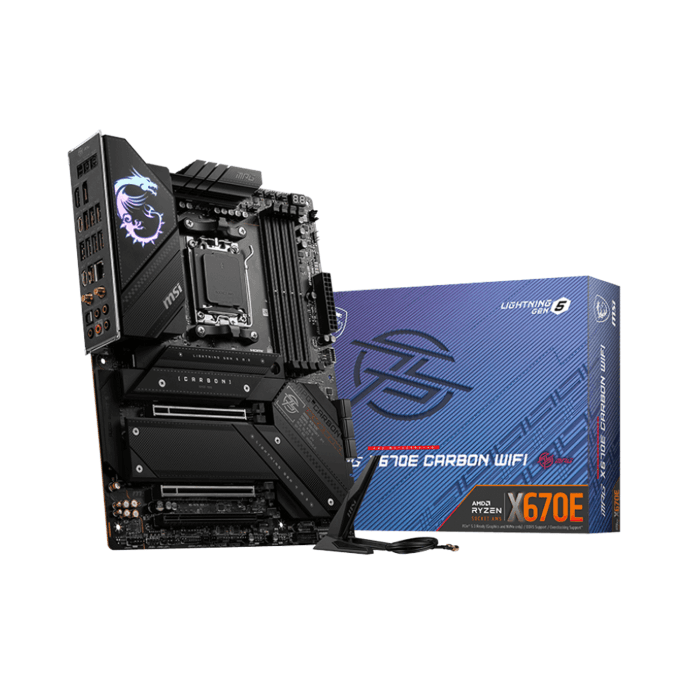

MSI MPG X670E Carbon Wifi

MSI MPG X670E Carbon Wifi

Model No MSI MPG X670E Carbon Wifi AMD DDR5 Gaming Motherboard
Part No 911-7D70-013
Chipset AMD X670
Form Factor ATX
Socket Compatibility Supports AMD Ryzen™ 8000/ 7000 Series Desktop Processors
Socket AM5
Wireless & Bluetooth AMD Wi-Fi 6E
The Wireless module is pre-installed in the M.2 (Key-E) slot
Supports 20MHz, 40MHz, 80MHz,160MHz bandwidth in 2.4GHz/ 5GHz or 6GHz* bands
Supports 802.11 a/ b/ g/ n/ ac/ ax

Supports Bluetooth® 5.3**

* Wi-Fi 6E 6GHz may depend on every country’s regulations and will be ready in Windows 11.
** Bluetooth 5.3 will be ready in Windows 10 build 21H1 and Windows 11.
LAN Realtek® RTL8125BG 2.5Gbps LAN
Memroy 4x DDR5, Maximum Memory Capacity 256GB
Memory Support DDR5 7800+(OC)/ 7600(OC)/ 7400(OC)/ 7200(OC)/ 7000(OC)/ 6800(OC)/ 6600(OC)/ 6400(OC)/ 6200(OC)/ 6000(OC)/ 5800(OC)/ 5600(OC)/ 5400(OC)/ 5200(OC)/ 5000(OC)/ 4800(JEDEC) MHz
Max. overclocking frequency:
• 1DPC 1R Max speed up to 7800+ MHz
• 1DPC 2R Max speed up to 6400+ MHz
• 2DPC 1R Max speed up to 6400+ MHz
• 2DPC 2R Max speed up to 5400+ MHz

Supports Dual-Channel mode
Supports non-ECC, un-buffered memory
Supports AMD EXPO
Onboard Graphics 1x HDMI™
Support HDMITM 2.1 FRL, maximum resolution of 4K 120Hz*
1x DisplayPort
Support DP 1.4, maximum resolution of 4K 60Hz*
1x Type-C DisplayPort
Supports DisplayPort 1.4 with HBR3, maximum resolution of 4K 120Hz
*Available only on processors featuring integrated graphics. Graphics specifications may vary depending on the CPU installed.
