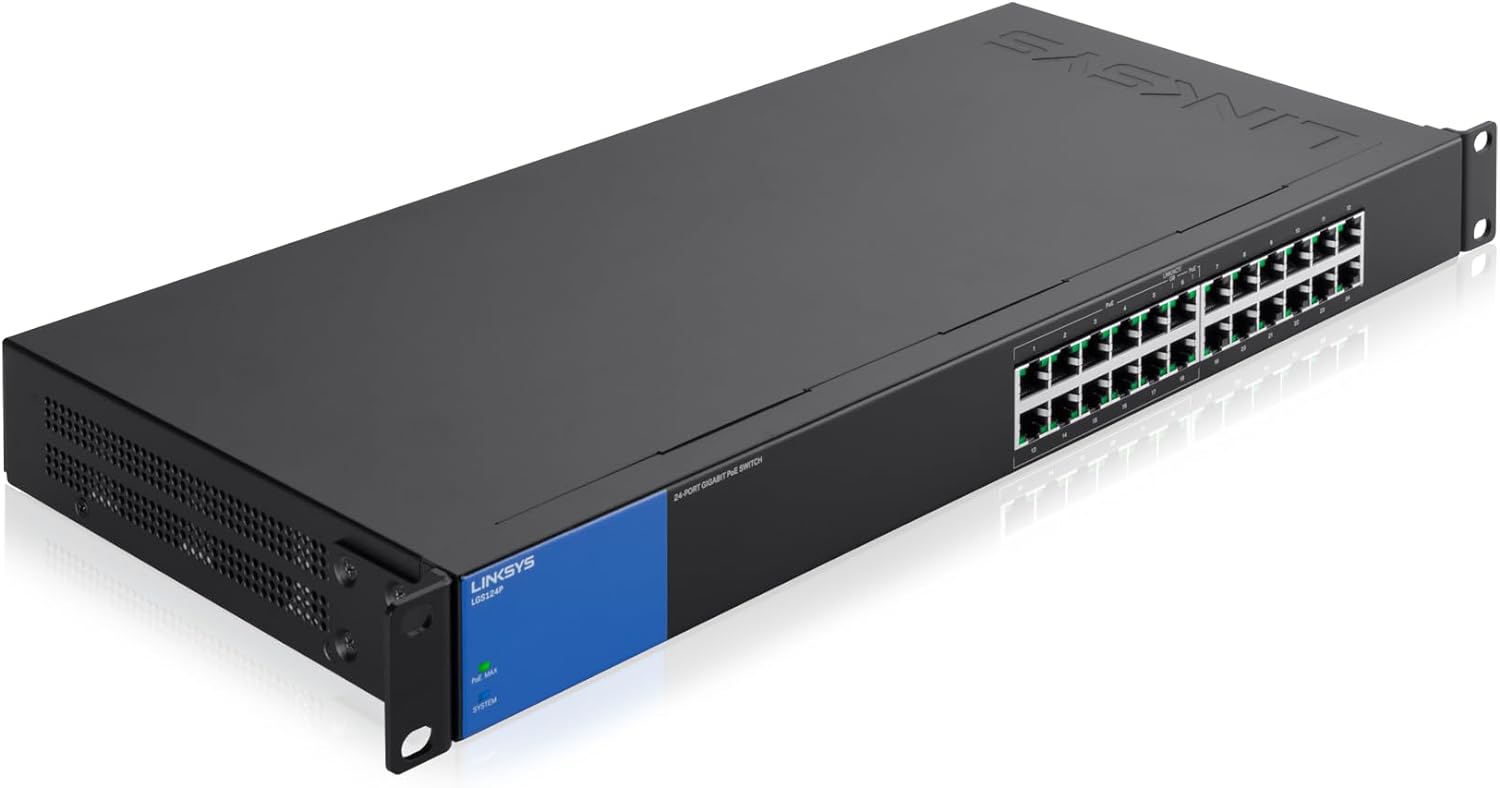

Linksys 24-Port Business Gigabit PoE+ Switch- LGS124P

FEATURES

GIGABIT PERFORMANCE

Minimize transfer times and stream high-bandwidth files to connected devices without interference

PLUG-AND-PLAY CONVENIENCE

Instantly extend your office network with a quick and easy installation.

QUALITY OF SERVICE (QOS) TRAFFIC PRIORITIZATION

Prioritize traffic to particular devices or activities & maintain mission-critical data throughput regardless of network congestion.

AUTO-SENSING PORTS

Automatically optimize speed for each connected device.

TECHNICAL SPECS

• Model Name:
  LGS124P
• Network Standards:
  • IEEE 802.3
  • IEEE 802.3u
  • IEEE 802.3x
  • IEEE 802.3ab
  • IEEE 802.3az
  • IEEE 802.3af
  • 802.3at (PoE+)
• Ports:
  24-port switch with 12 PoE+ ports (ports 1–6 and 13–18) and dedicated PoE power budget of 120 W
• LEDs:
  Link, speed, activity, and PoE indicators
• Performance:
  • Full line rate and forwarding rate of 64B frame at:
  • 1.488 Mpps for 1000M port
  • 0.1488 Mpps for 100M port
  • 0.01488 Mpps for 10M port
• Maximum Power Consumption:
  8.69 W / 19.27 W
• MAC Address Table Size:
  8,000 entries
• Bandwidth:
  48 Gbps (non-blocking)
• Fans:
  One
• Minimum System Requirements:
  Connected devices need Ethernet connectivity and Ethernet cables.
• Dimensions (LxWxH):
  440 x 200 x 44 mm (17.3 x 7.9 x 1.7 in.)
• Weight:
  2.758 kg (6.08 lbs)
• Power Consumption:
  7.79 W / 17.65 W

• Power Consumption:
  7.79 W / 17.65 W
• Power Input:
  100–240 VAC, 50/60 Hz
• Power Saving:
  Cable connected detection, sleep mode
• Power Supply:
  Internal
• Operating Temperature:
  0–50°C (32–122°F)
• Storage Temperature:
  -40–70°C (-40–158°F)
• Operating Humidity:
  10–90% (non-condensing)
• Storage Humidity:
  10–90% (non-condensing)
• Mounting:
  Rack
• Quality Of Service:
  802.1p and DSCP
• Regulatory Compliance:
  FCC Class A, CE, UL, CB
