AJA Kona 1 Overview

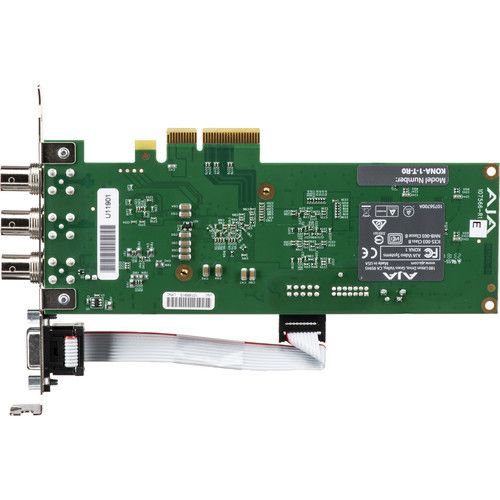

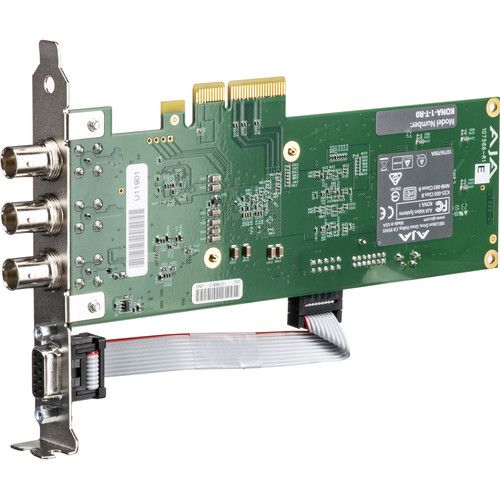

The AJA KONA 1-T is the tall, consumer version of the KONA 1 capture and playback card. It’s Mac/Windows/Linux 2-lane PCIe 2.0-compatible and offers single-channel 3G-SDI 2K/HD 60p frame-accurate input/output and a selectable reference/LTC input. It also features an integrated, exposed 9-pin RS-422 control port (while the short version is designed for OEM developers and comes without this port). The KONA 1-T allows efficient capture, monitoring, and/or playback and also supports simultaneous monitoring during capture.

Key Features

Single-channel 3G-SDI 2K/HD 60p capture and playback
Tall, consumer version with RS-422 9-pin connector
Selectable HD/SD reference/LTC input
Simultaneous monitoring during capture
Mac/Windows/Linux 2-lane PCIe 2.0 compatible
Full-size BNC ports
16-channel SDI embedded audio input/output, 24-bit 48 kHz
ANC capture and processing
8-/10-bit YCbCr and RGB frame buffer formats

AJA Kona 1 Specs

Video Formats	2048 x 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 2048 x 1080PsF at 23.98, 24, 25 1080p at 23.98, 24, 25, 29.97, 30, 50, 59.94, 60 1080i at 50, 59.94, 60 1080PsF at 23.98, 24, 25, 29.97, 30 720p at 50, 59.94, 60 625i at 50 525i at 59.94
Video Inputs	1 x 3G-SDI on BNC, SMPTE-259/292/296/424, supports 16-channel 24-bit/48 kHz synchronous embedded audio
Output	1 x 3G-SDI on BNC, SMPTE-259/292/296/424, supports 16-channel 24-bit/48 kHz synchronous embedded audio
Reference/LTC Input	1 x 3G-SDI on BNC, analog color black or HD tri-level sync, LTC
Serial Control	1 x RS-422 9-pin D-connector Pinout: 1 – GND 2 – RX- 3 – TX+ 4 – GND 5 – No connection 6 – GND 7 – RX+ 8 – TX- 9 – GND Shell – GND
Interface	2-lane PCIe 2.0
Operating Temperature	32 to 104�F / 0 to 40�C
Storage Temperature	-40 to 140�F / -40 to 60�C
Relative Humidity	10-90% non-condensing
Operating Altitude	< 9850′ / < 3000 m
Dimensions	0.9 x 7.4 x 4.8″ / 2.2 x 18.8 x 12.1 cm
Weight	Approx. 0.3 lb / 135 g
Package Weight	0.625 lb
Box Dimensions (LxWxH)	9.8 x 6.45 x 3.25″
