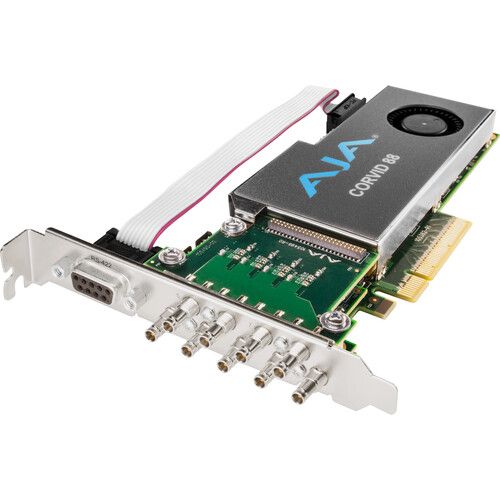

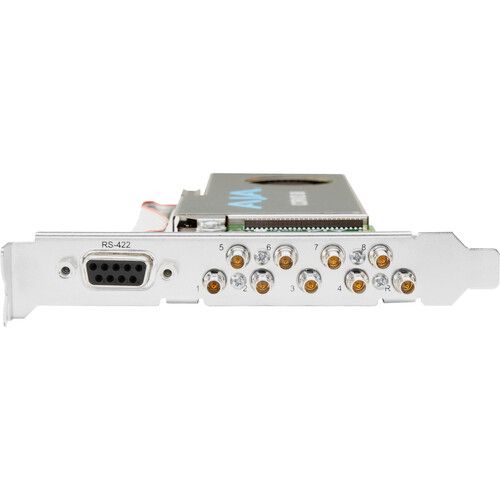

AJA Corvid 88 8-Channel 3G-SDI I/O Card with Fan (Tall Bracket) | CRV88-9-T-R0

PCIe 2.0 8-Channel I/O, Raster Independent Channels, 4K Capable, Short PCIe Bracket, Includes 9x 101999-02 Cables

AED 13,450.00

Available on backorder

Enquiry
SKU: CRV88-9-T-R0
Compare
Add to wishlist
8 People watching this product now!
  • Store Collection

Timing : 10 am to 9.00 pm (Monday to Saturday)

  • Free Delivery
  • (Order value AED 300 or above)

1-2 Working Days

  • Warranty

More details

  • Return Policy

More details

Payment Methods:

The Corvid 88 8-Channel 3G-SDI I/O Card from AJA is an 8-lane PCIe 2.0 card that delivers multi-channel video and audio input/output. It accepts up to eight SD/HD/3G-SDI signals on DIN 1.0/2.3 connections which can be programmed as either input or output, with each able to support a different video format — provided all formats use the same clock timing. Connections can also be linked together to support Dual Link HD-SDI for high frame-rate 1080p/2K and Quad Link 3G-SDI for Ultra HD (3840 x 2160) / DCI 4K (4096 x 2160) formats.

Key Features:

  • PCIe 2.0, 8-lane
  • Up to eight independent SD/HD/3G-SDI channels on DIN 1.0/2.3 connectors
  • Supports SD, HD, 2K, Ultra HD, and DCI 4K resolutions
  • Connections can be linked to support Dual Link
  • High frame up to 50p and 60p
  • 8/10-bit YCbCr and RGB frame buffer formats
  • Frame Stores (In or Out)
  • Four independent Mixer/Keyer widgets
  • Four independent, 16-channel, 48 kHz, SDI-embedded audio I/O engines
  • Analog Color Black or HD Tri-Level Sync
  • Color Space converters
  • Eight 1D LUTs
  • External RS-422 port

AJA Corvid 88 Specs

System ConnectionPCIe 2.0 x8
Inputs/Outputs8 x BNC (3G-SDI | 16-Channel)
Other I/O1 x DE-9/DB-9 RS-422 Input
2 x LC Fiber Reference Input
Simultaneous Multi-Input SupportYes: 8 Simultaneous Inputs
Input Video FormatSDI (10/12-Bit 4:4:4/4:2:2 RGB, YCC)
UHD 4K at 50/60 fps
Input Audio FormatAnalog: 48 kHz / 24-Bit
Output Video FormatSDI (10/12-Bit 4:4:4/4:2:2 RGB, YCC)
UHD 4K at 50/60 fps
Embedded AudioSDI: 16-Channel
Video Standard ComplianceSMPTE 259M-C/292M/425M
HDR CompatibilityDolby Vision, Hybrid Log Gamma
Power ConsumptionDevice: 23 W
Operating Temperature32 to 72�F / 0 to 40�C
Storage Temperature-40 to 158�F / -40 to 70�C
Operating Humidity10 to 90% (Non-Condensing)
Dimensions7.3 x 4.9 x 0.9″ / 185.4 x 124.5 x 22.9 mm
Weight0.4 lb / 0.2 kg

Packaging Info

Package Weight1.205 lb
Box Dimensions (LxWxH)10.2 x 6.4 x 3.3″
